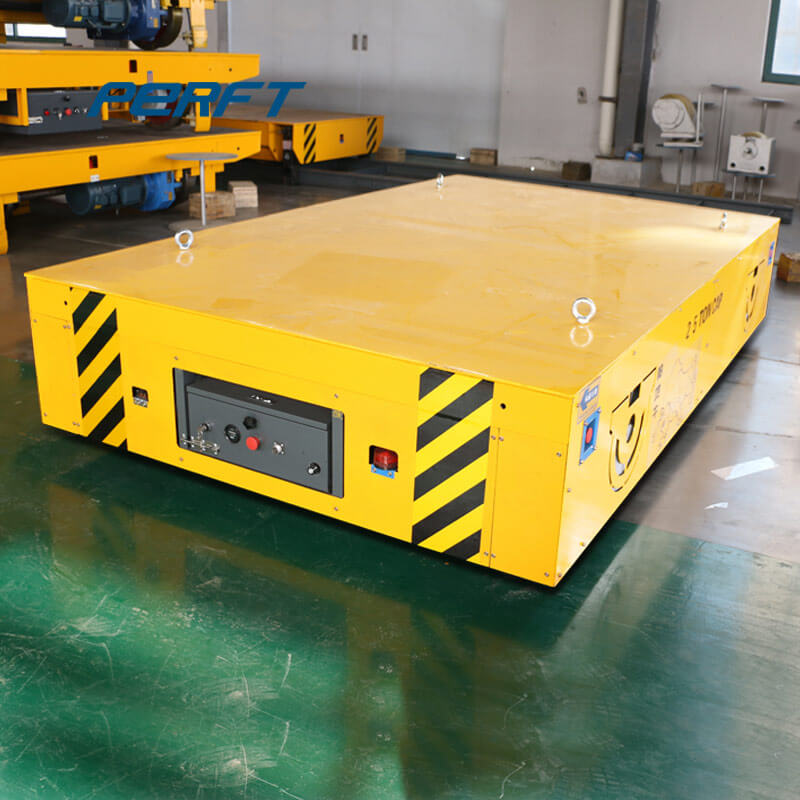

PERFECT’s lithium battery-powered industry track custom transfer wagon, also known as cross flat cart, transfer trolley, electric flat cart, have advantages as simple structure, easy operation and maintenance, large load capacity, and so on, with which these transfer carts are widely used in machine manufacturing and metallurgical factory matching up with lift cranes to transport heavy objects warehouse across. The rail transfer carts are suitable for various industries, steel mill and factory, paper roll plant, painting room, shipbuilding, new factory building project, machine processing line, heavy industry, airport, and so on to transfer or handling material and equipment from one place to another, from warehouse to workshop.
Application:
Uses of lithium battery-powered industry track custom transfer wagon:
Henan Perfect Handling Equipment Co., Ltd. is one professional designer and manufacturer of a wide range of transfer cars, industrial trailers, die carts, lifting platform that are used in metallurgy, manufacture, oil, and gas, die shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse, and many others.
The lithium battery-powered industry track custom transfer cart is mounted on tracks, so you have to install the rails before using them. They can meet the most important demands: where places are very limited and pathways are extremely constrained.
The lithium battery-powered industry track custom transfer cart has been created and built for their utmost extent of working flexibility. Due to they have no predefined pathway and can steer in any direction and can run on any kind of floor the power-driven trolleys are very beneficial to bring the heavy-duty where overhead cranes cannot reach the best method for all those appliances with delicate handling issues in limited space.
Advantage:
For smaller loads, manual carts can be dedicated to specific work activities such as shuttling materials. This often makes the carts more available for use. transfer wagons are more accommodating for moving long loads through restrictive passageways or doorways. For heavier loads, transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor areas. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
Height(H) | 450 | 550 | 650 | 900 | 1200 | |
Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
Motor Power(kW) | 1 | 2.2 | 5 | 10 | 15 | |
Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
