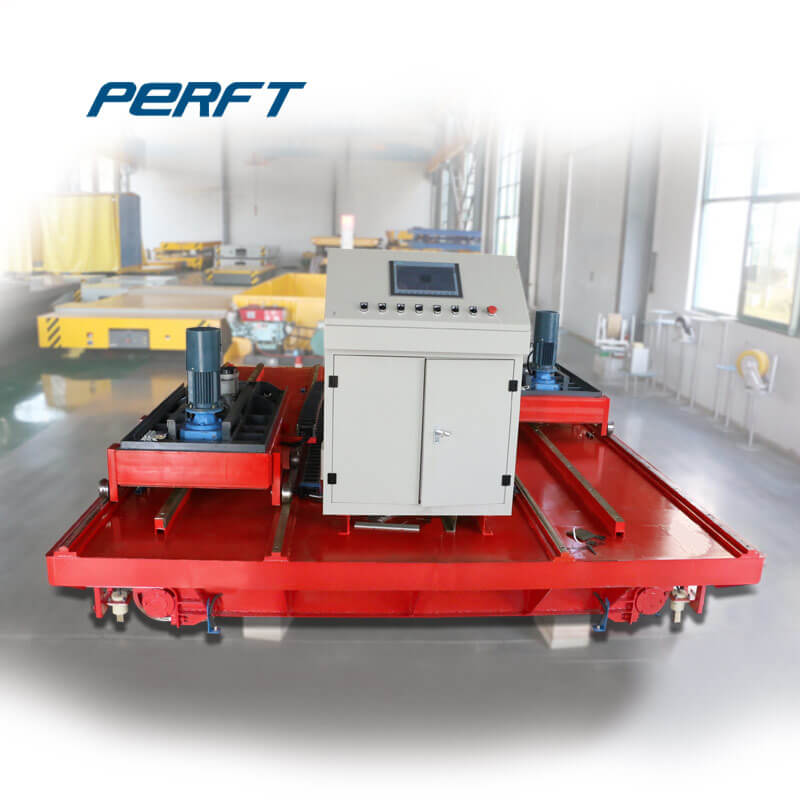

The industry motorized transport vehicle transfer cart rail transfer trolley reduces the AC 380V power to two phases of 36V through a transformer and connects them to two rails. The wheels on the rail transfer trolley introduce the AC 36V power on the rail into the vehicle electrical box. Rectify the 36V AC to 36V DC, and then control the DC motor through the DC control system to make the transfer trolley start, stop, forward, backward, speed adjustment, etc. This series of electric rail powered transfer trolley can be used in S-shaped rails, curved tracks, and high-temperature occasions; hydraulic lift systems can be installed on transfer trolleys; DC motors for transfer trolleys have smooth starting, large starting torque, low impact on the reducer, low voltage, use Long life and other advantages. It has safety and flexibility and has high requirements for track laying (requires insulation treatment of the track). Electric rail-powered transfer trolley is suitable for occasions with small load capacity (<50t), high frequency of use, and medium and long-distance transportation. Not limited by distance, but the running distance exceeds 70 meters, the number of transformers needs to be increased to make up for the rail voltage drop.
Description
The rail-powered transfer trolley is an electric transfer cart produced by the Henan Perfect Handling Equipment Co., Ltd. The series car can run on S shape or Arc shape rails. It is safe and flexible, but the rail needs to be insulated in an erection. When the running distance is longer than 70m, the transformer needs to be increased to raise the voltage. The series transfer trolley is suitable for heavy-duty load, high using frequency, and meets full automation demand.
Advantages
- Safe and flexible
- Adjustable speed
- Low noise level
- Save cost
- Eco-friendly
- Easy operation
- Easy maintenance
- High using frequency
Successful case
A company in load in Zhejiang, orders two rail powered trolley which is produced in Henan Perfect Handling Equipment Co., Ltd. in 2018.
Related technical parameters are as follows:
1, load capacity: 120t (safety load factor 150%);
- Table size: 8000*3000*900mm;
- power supply: low voltage track power supply;
- operation: control with the handle + remote control;
- motor power: 15Kw;
- running speed: 0-20m/min;
- wheel diameter: 700mm;
- the color of the whole car: RAL1004;
- track model: P50.
This purchase of rail-powered transfer trolley is mainly used in ferroalloy processing workshops. Because of the heavy material, it needs to be transported by electric flat car. The sliding contact line electric transfer trolley is transported to the cutting plate machine, cutting into 20cm width, 80cm long, and then cut into about 50*50c with a small shear plate machine. Then conveyed to the electric stove through the conveyor belt.
