Introduction：

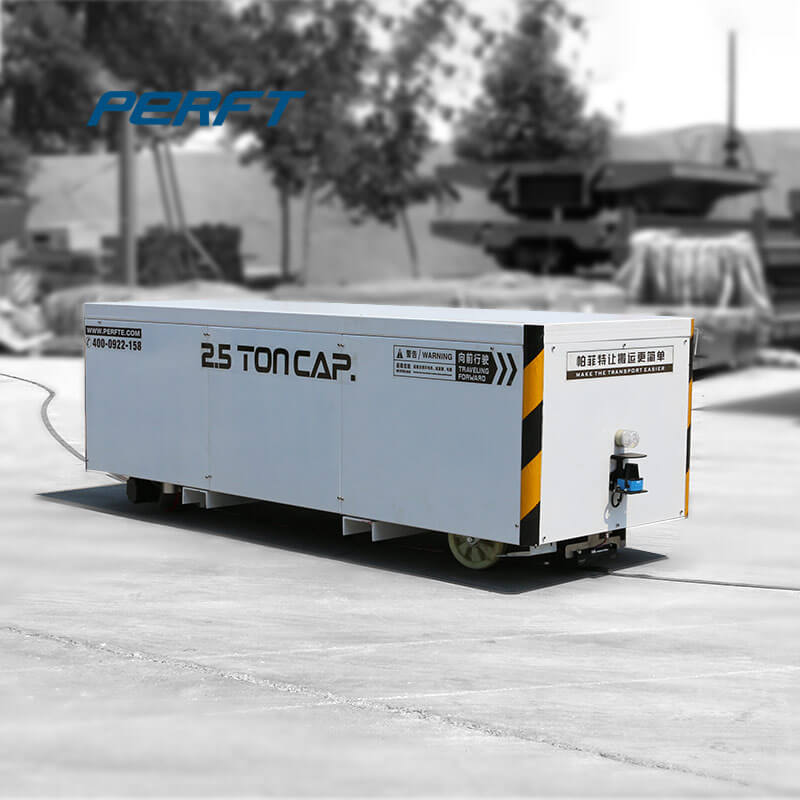

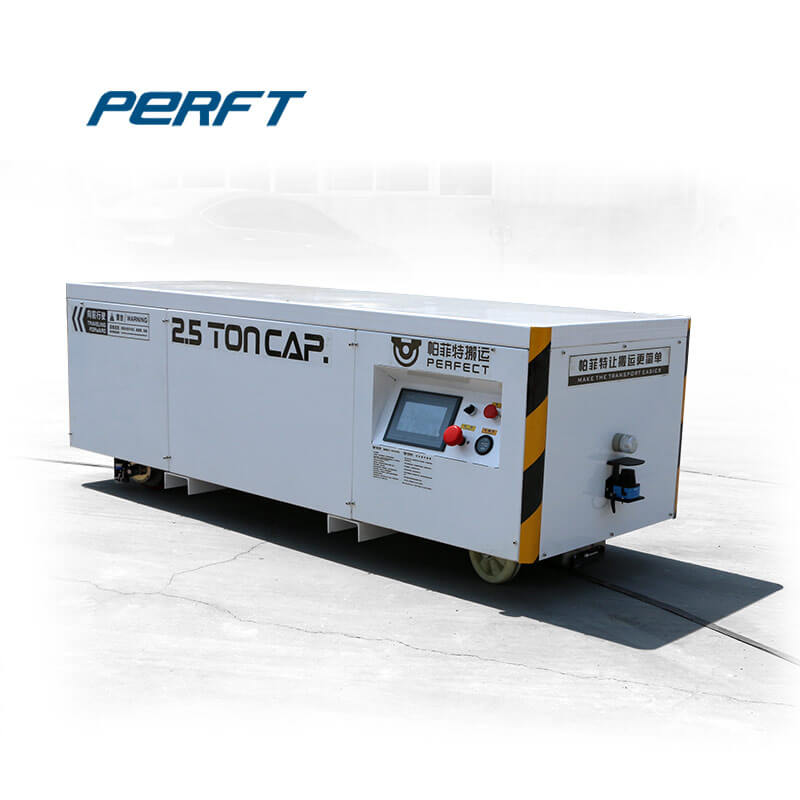

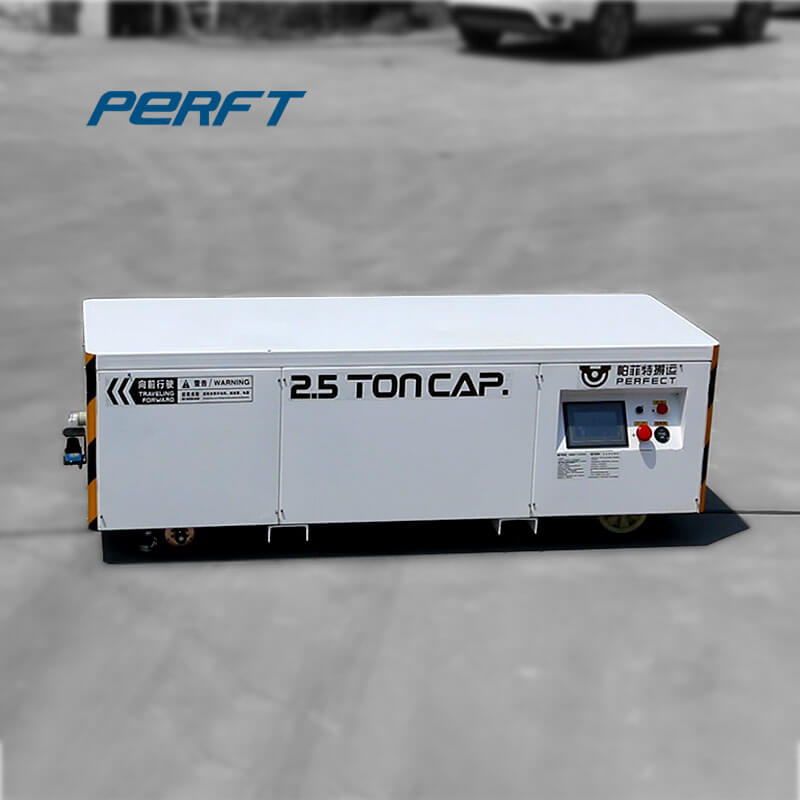

Heavy-duty automatic shuttle coil carrier AGV transport system permits the 380V alternating current to get in the electric control system directly and then drive the motor to make it start, stop, move forward, and move backward. The cable lies in the middle of the two rails and the working voltage is safe 36V. It can be used in high-temperature and explosion-proof environments. It’s usually used for short-distance transportation.
Application:
We produce a wide range of AGV Motorized Transfer Wagon, railway guided transfer carts, electric transfer cart, battery-powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters, and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil, and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse, and many other lines. We are sure to provide the product you want.
Parameter
| Model | BTL-2t | BTL -20t | BTL -50t | BTL -100t | BTL -150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kW) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
